CONNECTION







For full use of the  Smart Locking System  you need to have the following connections:



(for more details regarding the way the system should be connected with all components please see instructions)







  • Table - 1



Connect the system with a compact reader without sound indication.

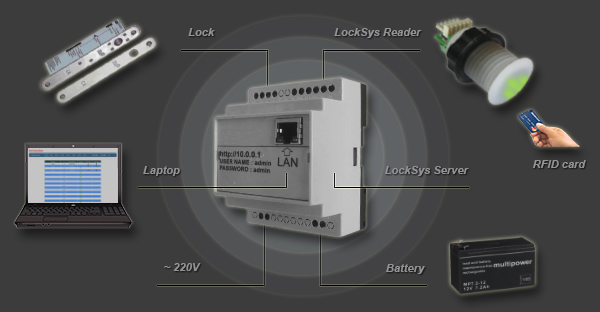

key locking system schema-1

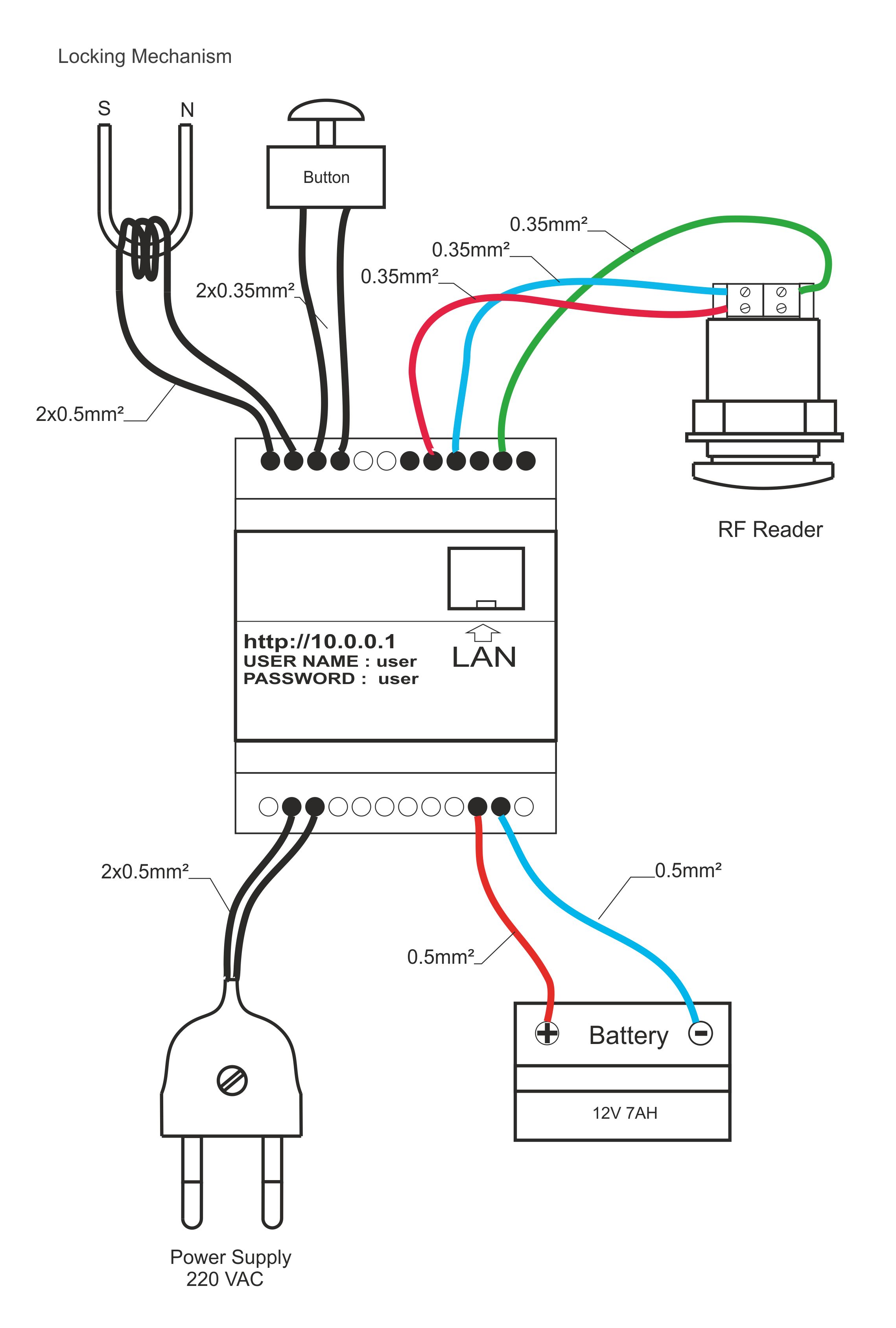

locking system connection-1











  • Table - 2



Connect the system with a universal reader with sound indication.

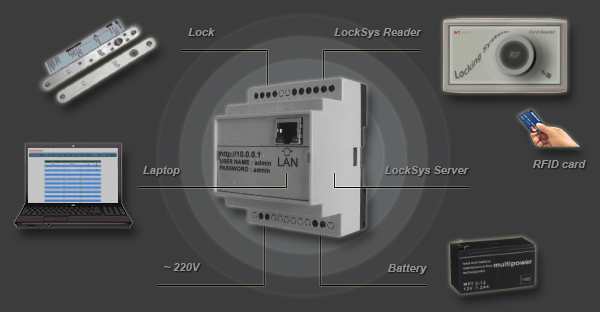

key locking system schema-2

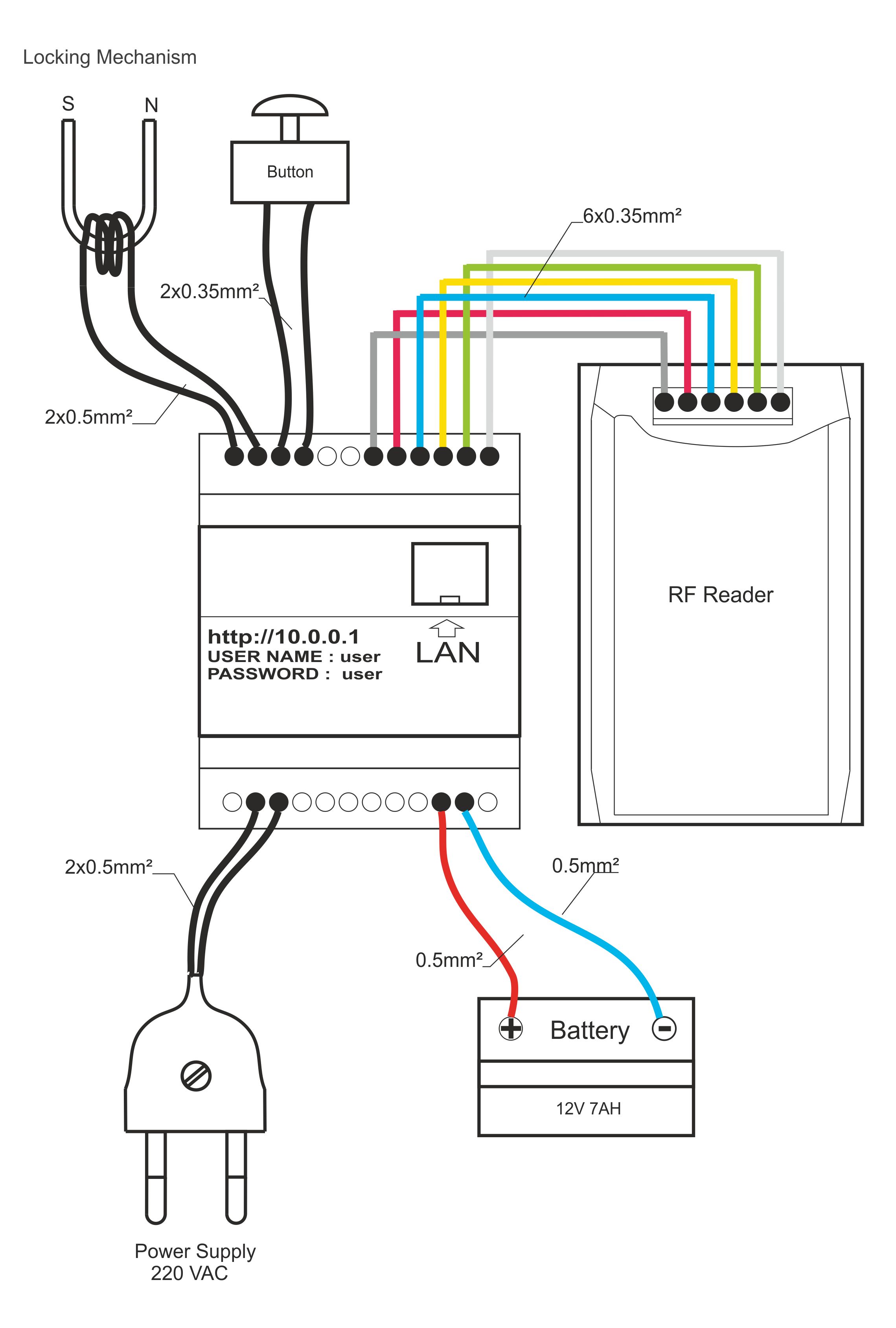

locking system connection-2
