RFID Reader M125
(Interface I2C)
| DESCRIPTION |
- Compact device for detection of RFID EM4102 compatible tags operating at 125 kHz
- Shows the identification number as ASCII String
- LED identification
- Supports interface I2C
| STRUCTURE |

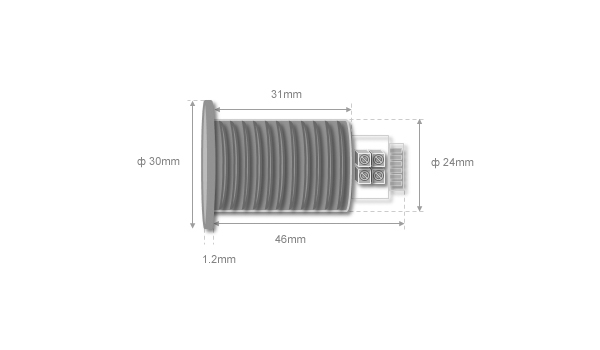

- body: size

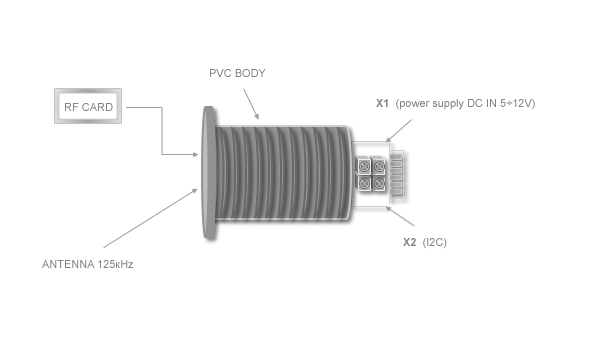

- view: side

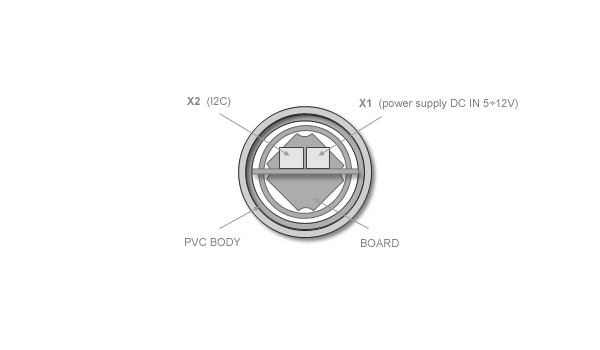

- view: back side
| TECHNICAL FEATURES |
- RF identification - 125кHz, EM4102 and compatible
- Interface communication - I2C
- Length of the interface cable - up to 20сm
- Tag reading distance - up to 6сm
- Power supply - DC 5 ÷ 12V
- Out +5V for supplying external devices - 50mA
- Input on writable tags - WR
- Electricity consumption - 90mA
- Work Temperature - -5 ÷ +50o C
- Weight - 30g
| APPLYING |
For authentication and control of RFID ЕM4102 compatible working tags with 125 kHz in:
- Systems for access control (agencies, buildings, hotels, parking lots, garages, etc.)
- Security devices (security shutters, door locks, vaults, deposit boxes, etc.)
- Play halls and amusement parks (billiards, soccer tables, darts, hockey, tennis …… www.abcsys.eu)
- Vending machines (drinks, cigarettes, coffee, etc.)
| INTERFACE DESCRIPTION |
| I2C hardware address = 10 |
| Address | High Byte | Low Byte |
| 00 | Flags | ID 5 |
| 01 | ID 4 | ID 3 |
| 02 | ID 2 | ID 1 |
| MSB | LSB | |||||||
| Flags | ? | - | - | - | - | - | - | - |
| MR7 | MR6 | MR5 | MR4 | MR3 | MR2 | MR1 | MR0 |
| Description: MR0 ÷ MR6 - not usable |
| MR7 - 0 = Non Valid Tag 1 = Valid Tag |
