RFID Reader M125
(Interface TTL RS232)
| DESCRIPTION |
- Compact device for detection of RFID EM4102 compatible tags operating at 125 kHz
- Sends the identification number as ASC II string
- LED identification
- Supports interface RS232
| STRUCTURE |

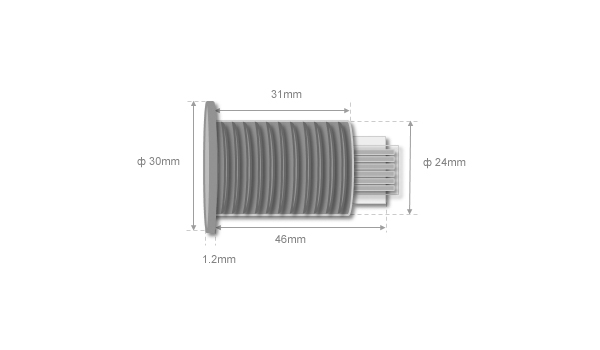

- body: size

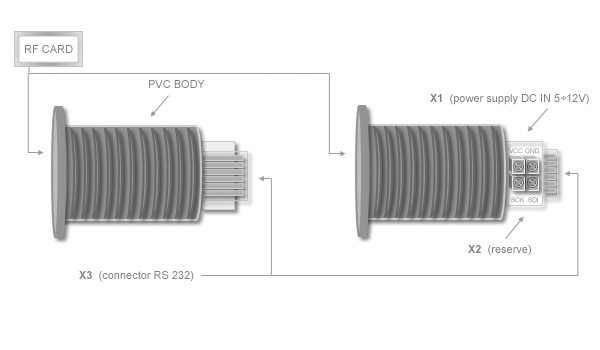

- view: side

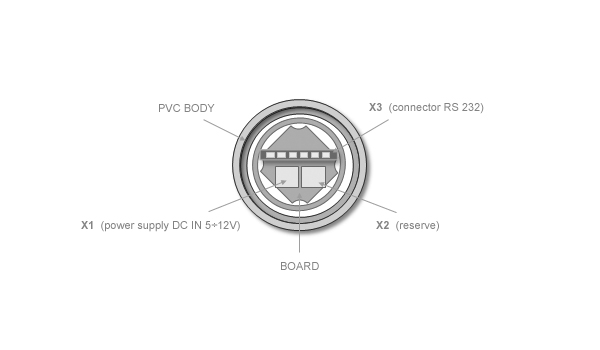

- view: back side
| TECHNICAL FEATURES |
- RF identification - 125кHz, EM4102 and compatible
- Interface communication - TTL RS 232
- Length of the interface cable - up to 20сm
- Tag reading distance - up to 6сm
- Power supply - DC 5 ÷ 12V
- Out +5V for supplying external devices - 50mA
- Electricity consumption - 90mA
- Work Temperature - -5 ÷ +50o C
- Input on writable tags - WR
- Weight - 30g
| APPLYING |
For authentication and control of RFID ЕM4102 compatible working tags with 125 kHz in:
- Systems for access control (agencies, buildings, hotels, parking lots, garages, etc.)
- Security devices (security shutters, door locks, vaults, deposit boxes, etc.)
- Play halls and amusement parks (billiards, soccer tables, darts, hockey, tennis …… www.abcsys.eu)
- Vending machines (drinks, cigarettes, coffee, etc.)
| COM PORT SETTINGS |
- Speed 9600 bps
- 8 bits data
- 1 stop bit
- Parity control - NO
- Flow control - NONE
| Tag ID | >ID1< | >ID2< | >ID3< | >ID4< | >ID5< | >\r< | >\n< |
| INTERFACE DESCRIPTION |

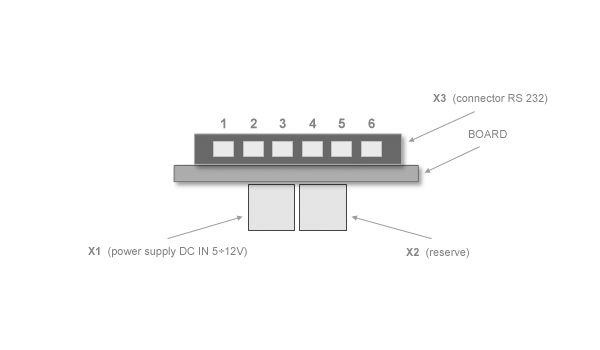

| X3 | 1 | 2 | 3 | 4 | 5 | 6 |
| Description | Reserve | GND | DC OUT +5V | TX | RX | WR |
| I/O | IN | - | DC OUT | OUT | IN | IN |
